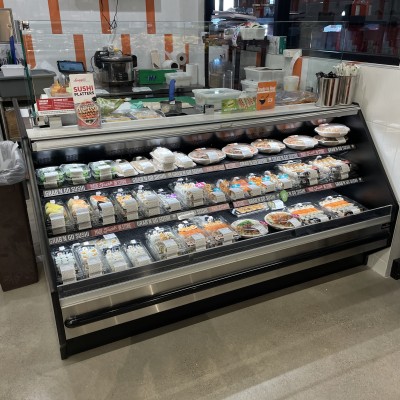

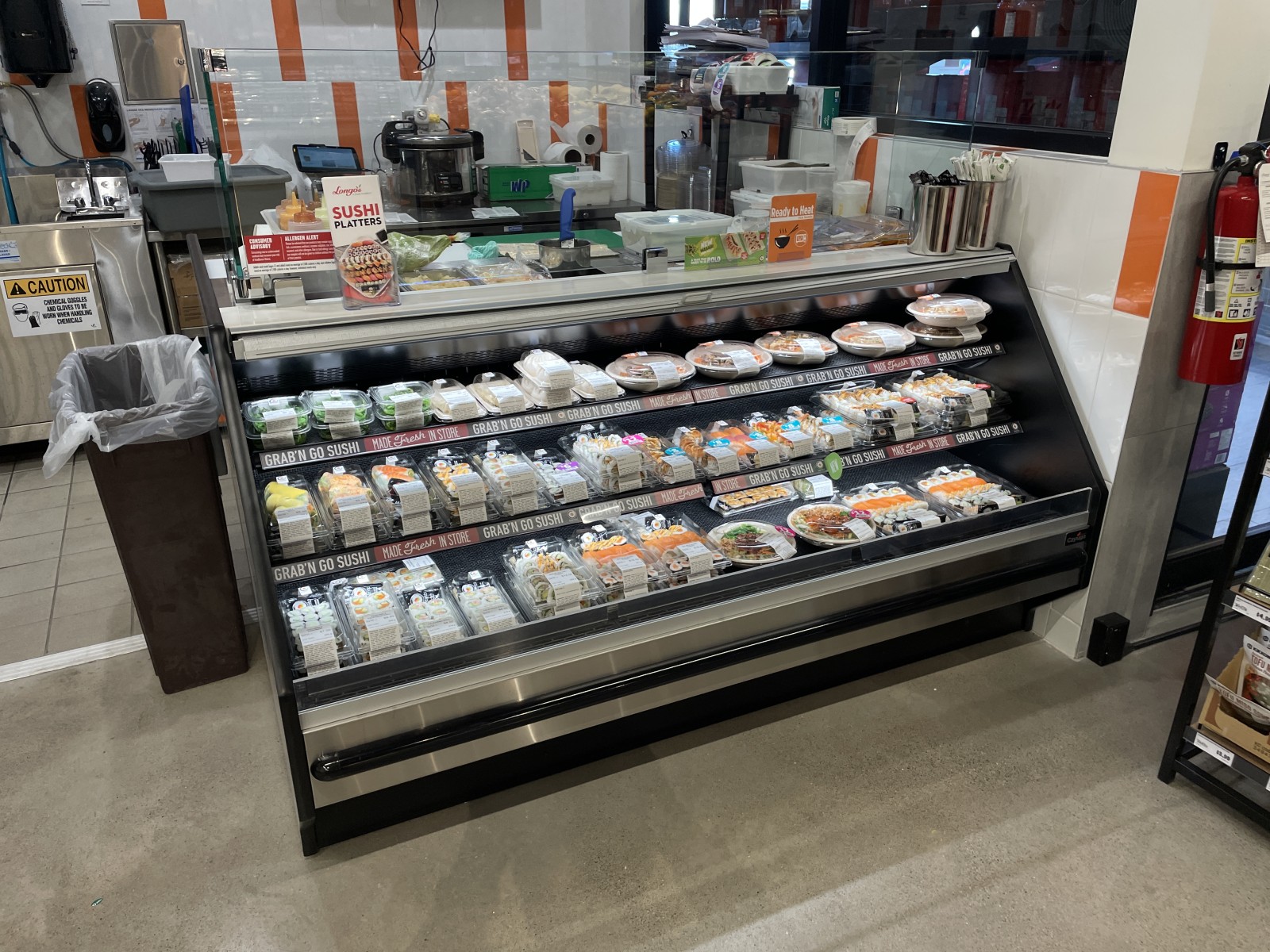

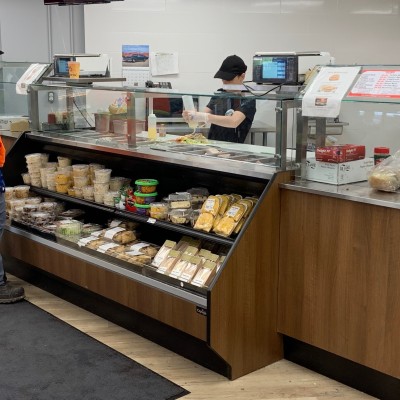

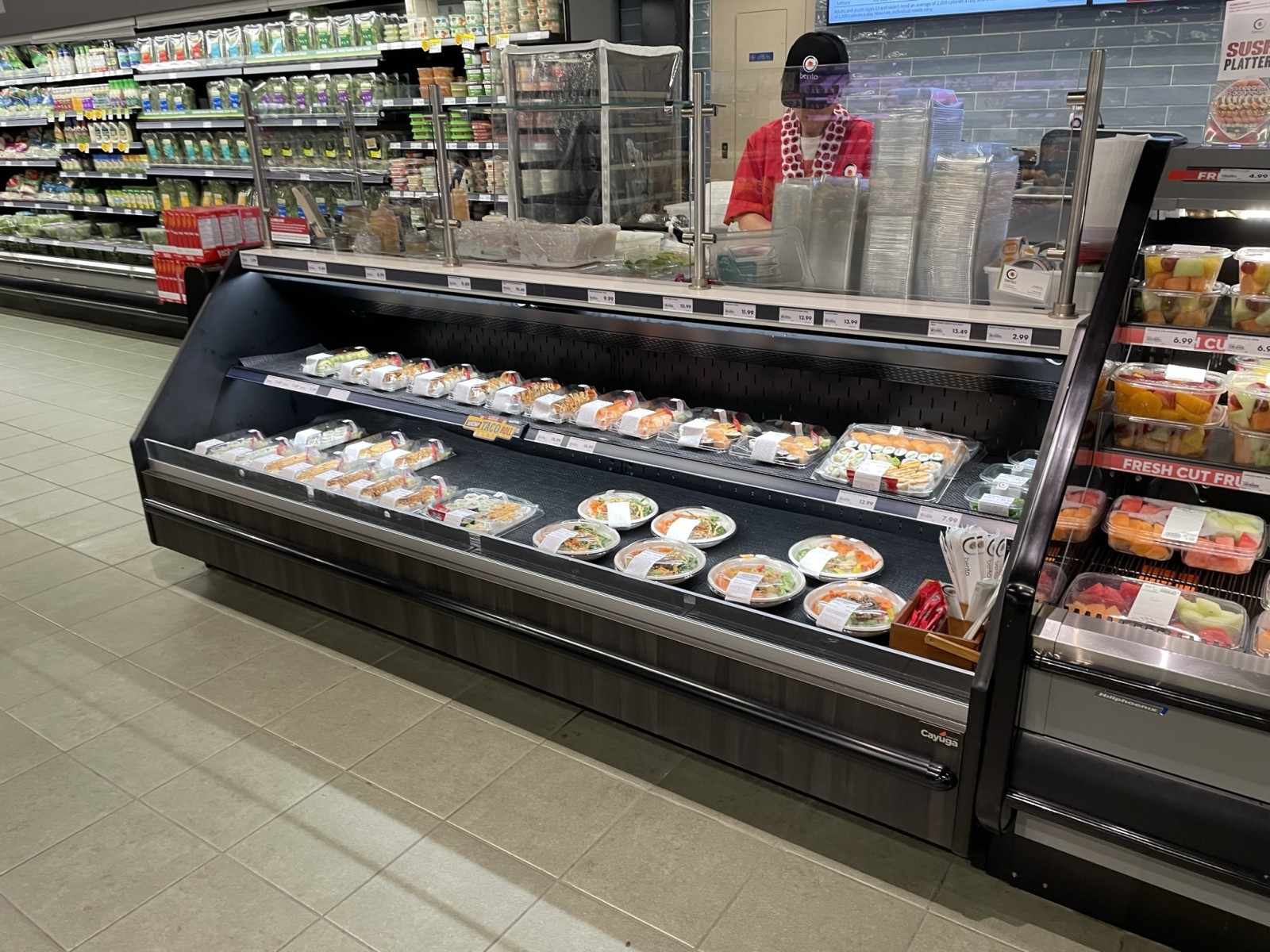

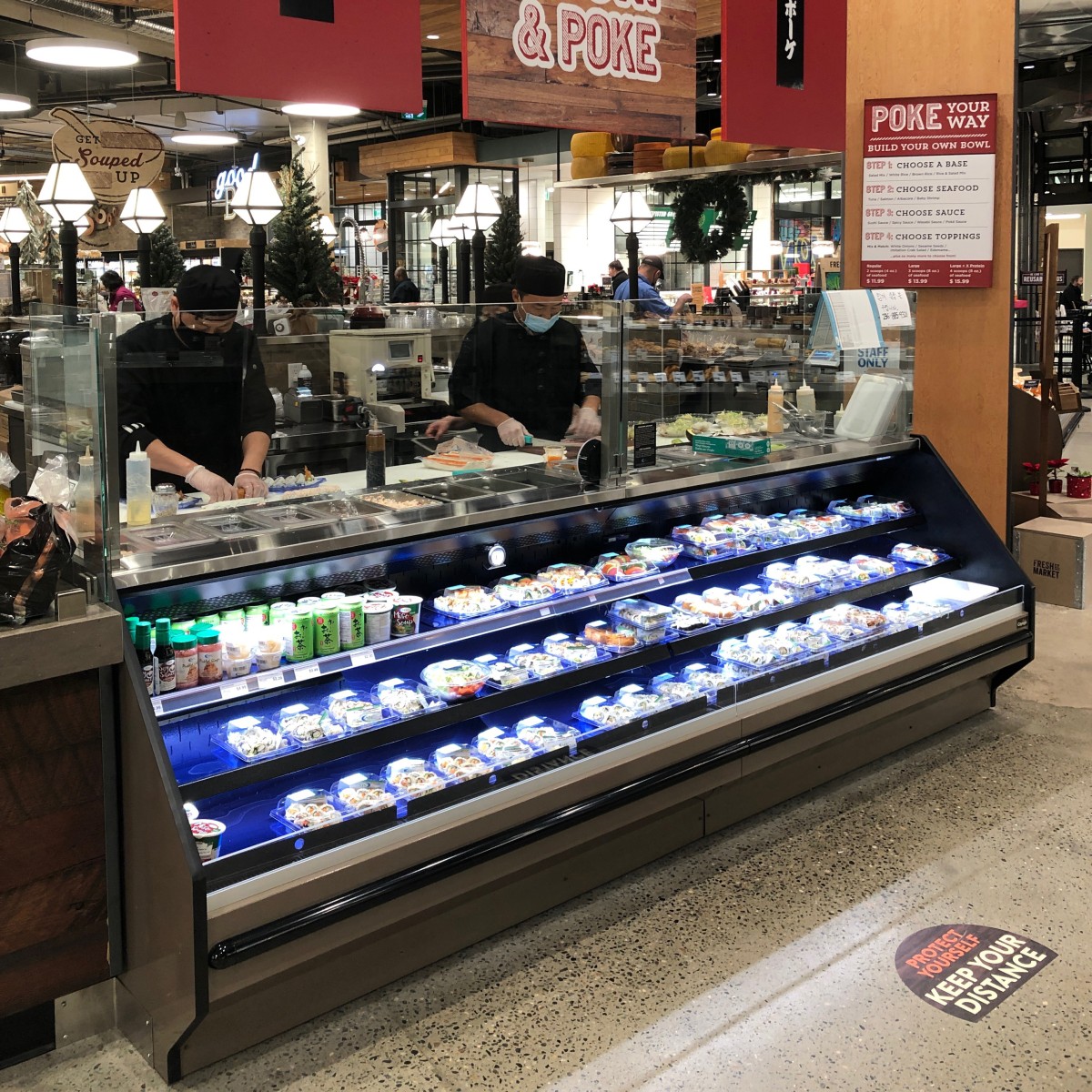

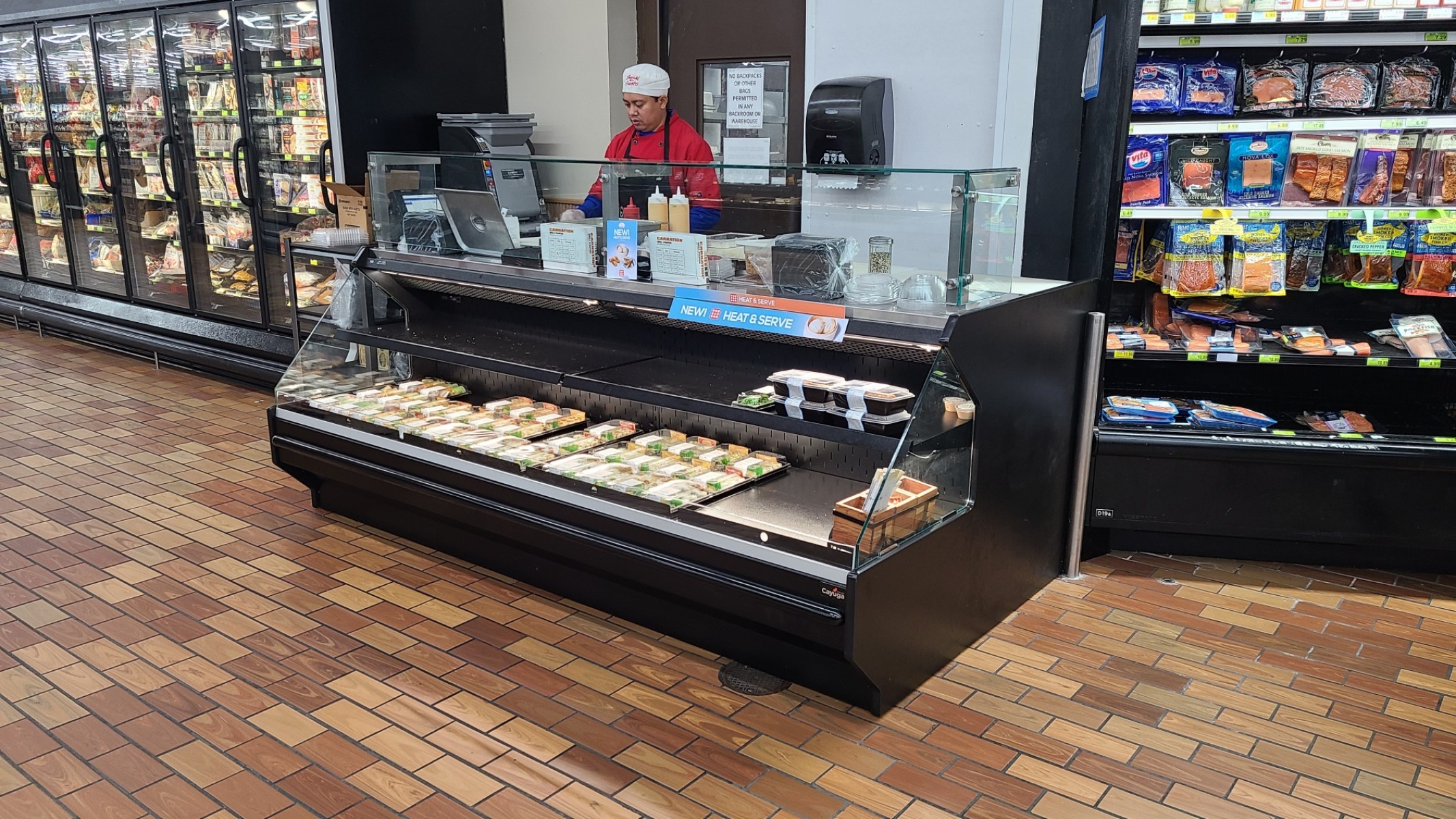

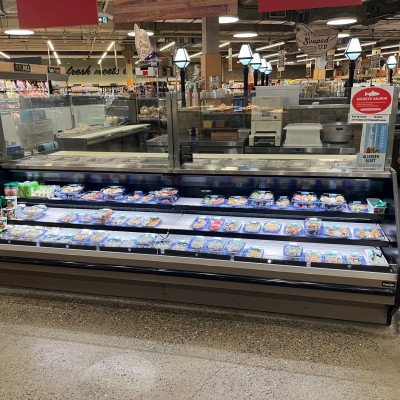

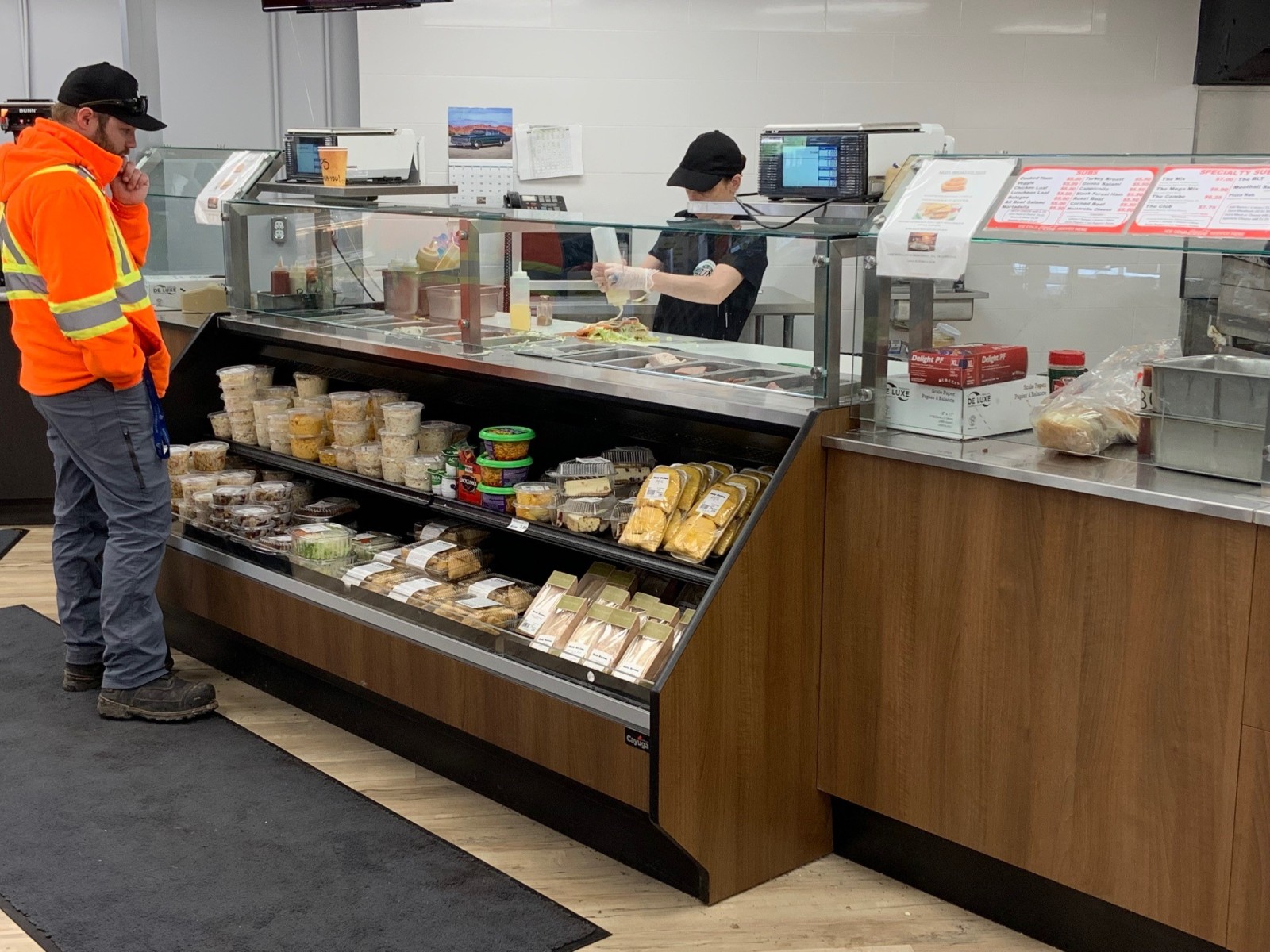

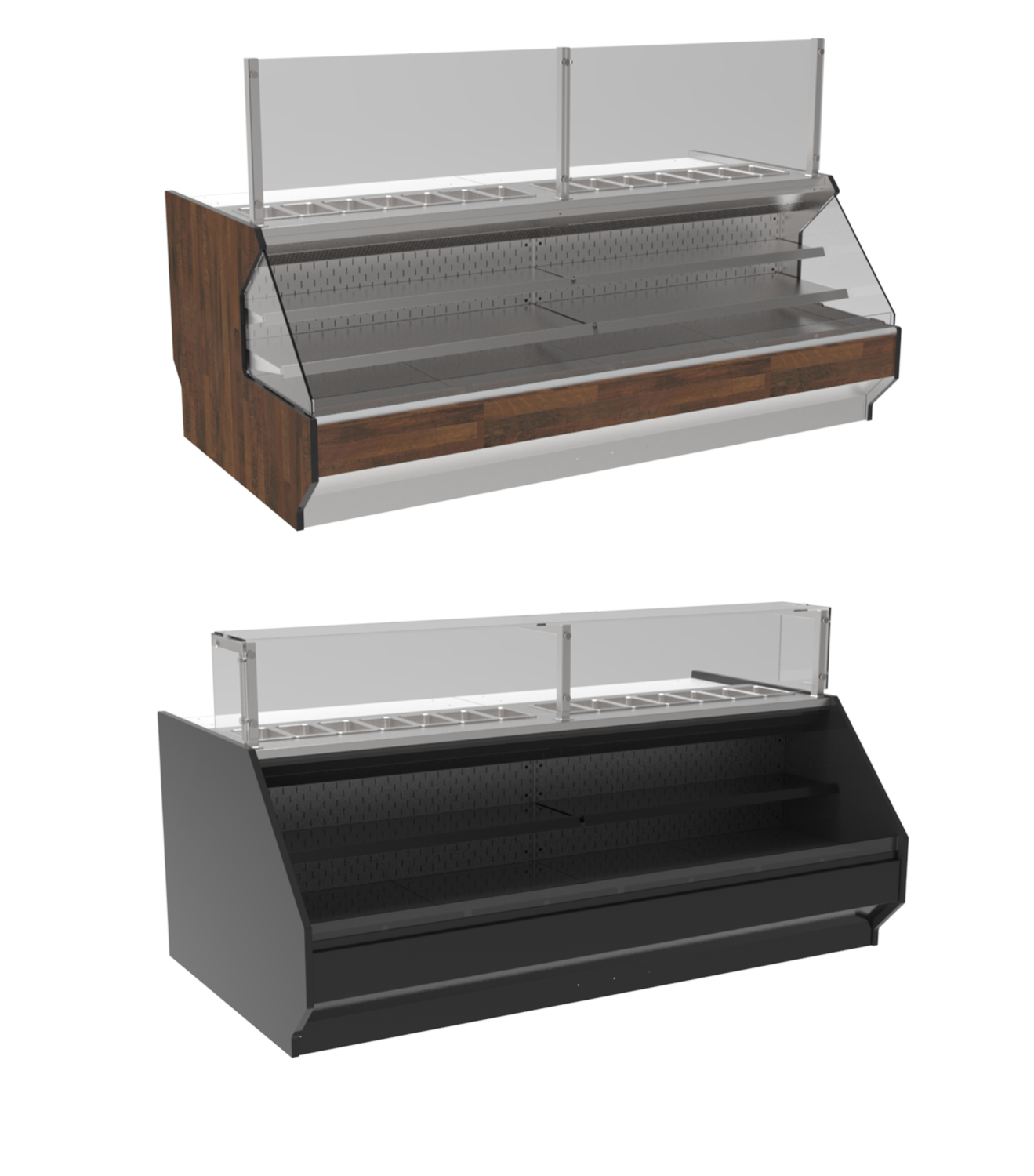

Front Self-Service Display, Rear Preparation Station & Refrigerated Base Storage Cabinet

Order Today

Models Available

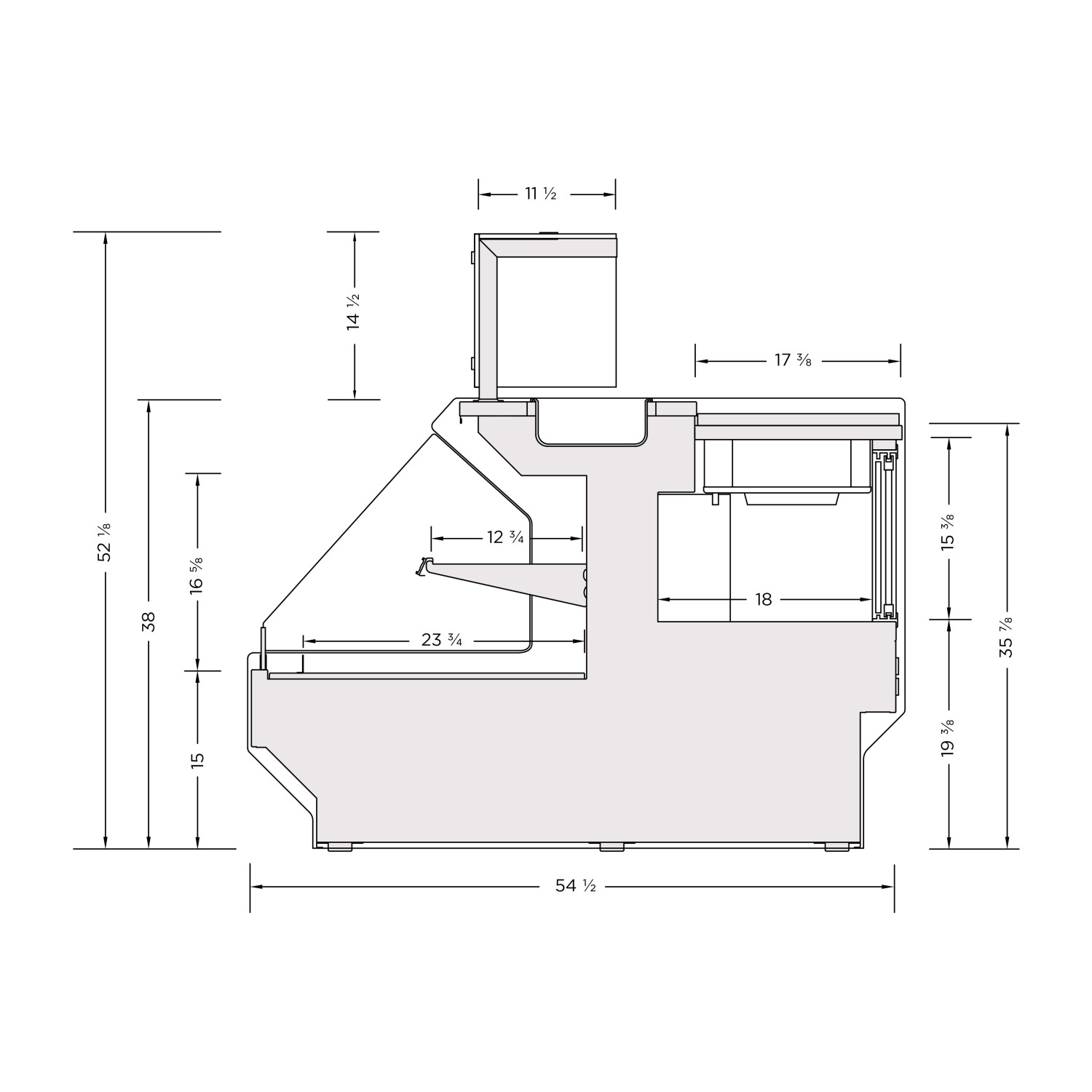

DOUW-4838-MR 48 ¼”L x 55 ½"D x 52 ⅛"H Remote Front Self-Service Display, Rear Preparation Station
DOUW-6038-MR 60 ⅜”L x 55 ½"D x 52 ⅛"H Remote Front Self-Service Display, Rear Preparation Station
DOUW-7238-MR 72 ½”L x 55 ½"D x 52 ⅛"H Remote Front Self-Service Display, Rear Preparation Station
DOUW-9638-MR 96 ½”L x 55 ½"D x 52 ⅛"H Remote Front Self-Service Display, Rear Preparation Station

Features

  • Brushed stainless steel internal cabinet construction.
  • Many exterior finish options available: powder coat paint, brushed stainless steel, decorative laminates and natural wood finishes.
  • Three interior finish options: textured powder coat black, white and brushed stainless steel.
  • The front décor panel can be extended to provide a more finished cabinet look.
  • Other custom options are offered. Refer to the options schedule on the next page.
  • The refrigerated front self-service display has a LED light strip mounted to the top ledge of the display area, and one 12”D adjustable metal shelf with a front product stop and LED light strip mounted to the bottom of the shelf.
  • The refrigerated rear storage cabinet is constructed of brushed stainless steel and has rear thermal sliding doors.
  • The top preparation area has an integrated front refrigerated well to hold a series of food pans. The prep counter is brushed stainless steel and has a removeable 12” white nylon cutting board.
  • The top preparation area is protected with a front mounted tempered glass sneeze guard, top shelf and end panels.
  • Designed to maintain the critical temperature of the products within the display, the storage cabinet and the top refrigerated well at a range of 38-41°F (3-5°C) with an ambient atmosphere of 75°F (24°C)/55% humidity.
  • ETL electrical certification and NSF-7 standards.
  • The refrigeration system is located below the rear storage cabinet, pulling fresh air from the far right side of the display and exhausting heat on the far left.
  • The refrigeration system is adjusted by two temperature controllers, one to control the front and top display and the other to control the rear storage cabinet.

Additional Features

  • Designed to maintain the critical temperature of the products within the display at a range of 38-41°F (3-5°C) with an ambient atmosphere of 75°F (24°C)/55% humidity. Designed for holding pre chilled product only
  • Electrical condensate evaporation system
  • ETL listed and sanitation certified to NSF 7
  • 1 year parts and labor warranty

Custom Options & Technical Specs

  • Please refer to spec sheets
  • Contact Cayuga Sales Rep for custom options
  • For technical specifications please refer to spec sheets
